This is simpimplant.rb, a simple ruby program based on the fx-ruby toolkit to draw ion implantation profiles based on the LSS model. You can see some screnn shots at the bottom of this page.

The 2d graphics used in this application might be released as a separate library later, it should be easy to use it already know for your own application. The basic idea is to have a GS_PlotCanvas where we draw and which contains the items (GS_PlotItems like axes, lines ...) to be drawn. A GS_PlotContext is used for actual plotting.


You can download SIMPIMPLANT and related Documentation here.


Simply unpack and copy all files to a directory. Then execute simpimplant.rb by the ruby interpreter. You need to have ruby and fx-ruby installed. The program was tested on Linux and Windows XP using ruby 1.6.7 and 1.6.8 with fx-ruby 1.16 and 1.17.

see readme for details

Screen Shots

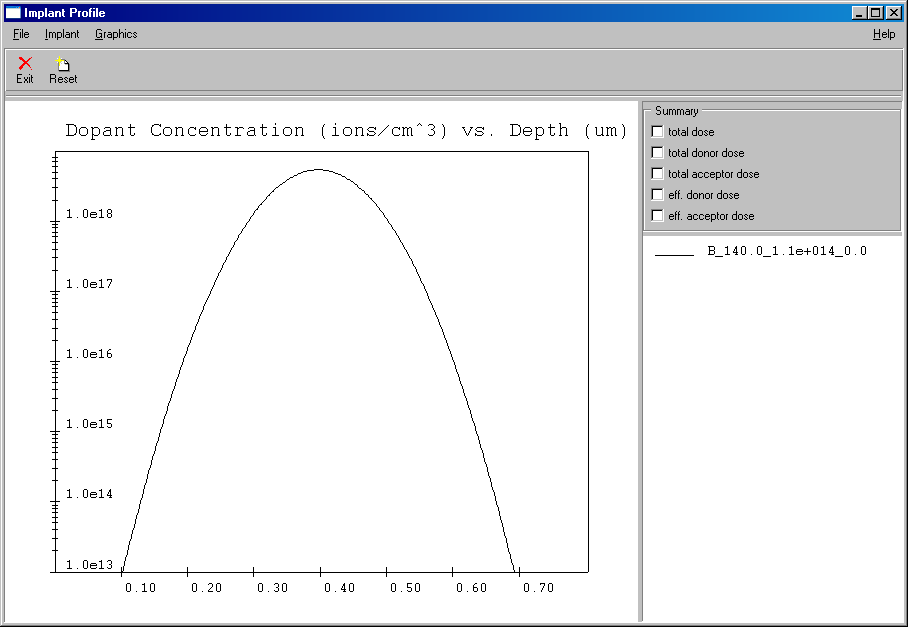

A single implant.

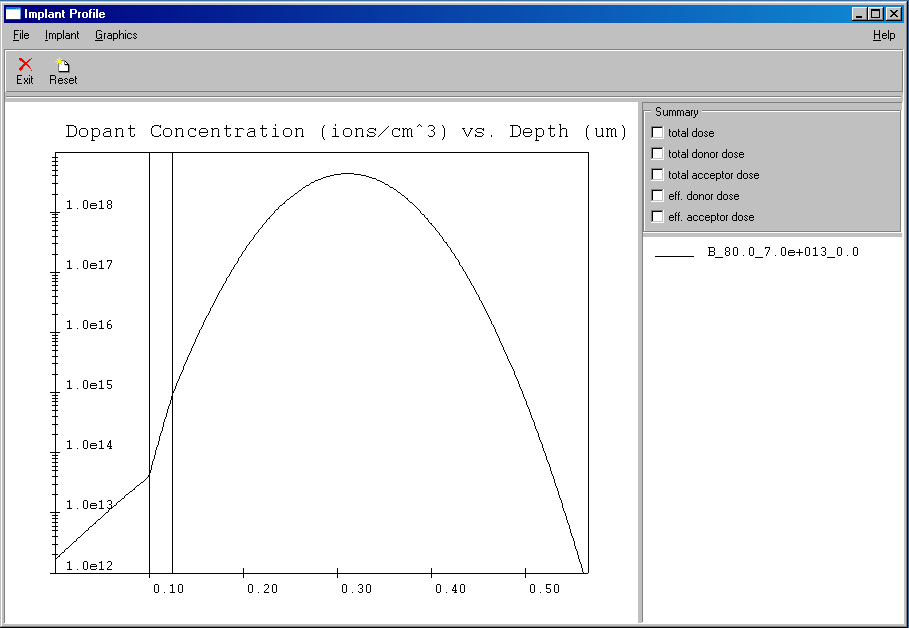

A single implant through a composite layer.

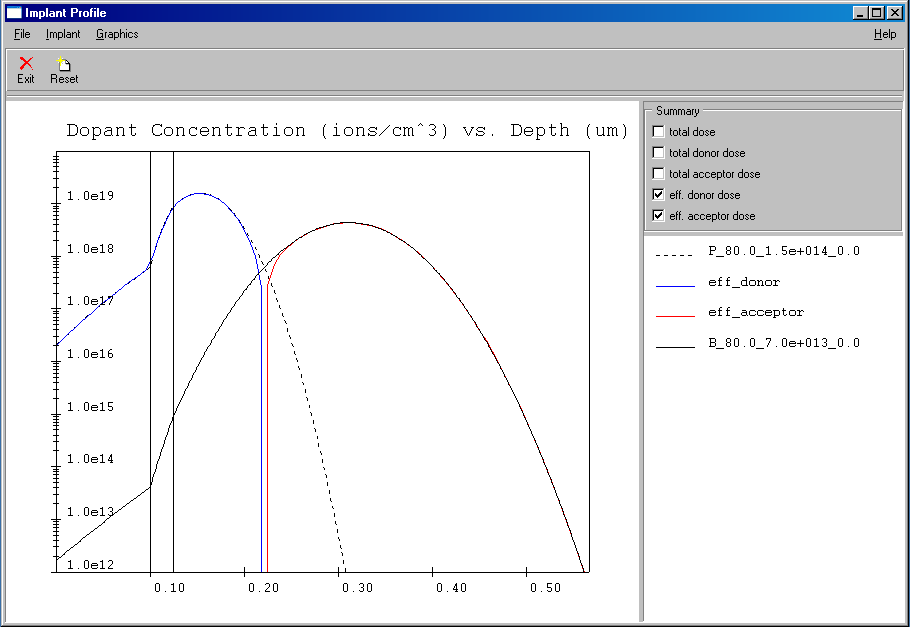

Two overlaid implants.

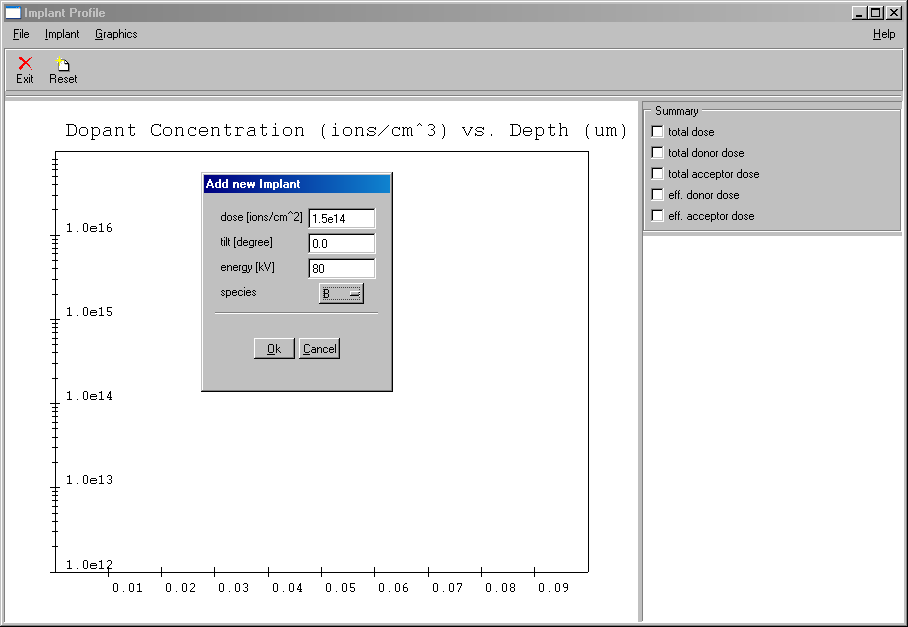

Dialog to add implants.
